Automatic Drilling Examples

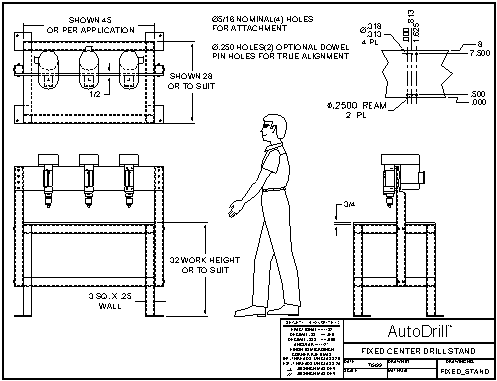

Fixed Location Vertical Drilling Fixture  drilling stand

This compact in-line drilling fixture can be assembled in-house, or fabricated by a local source, with our free assistance.

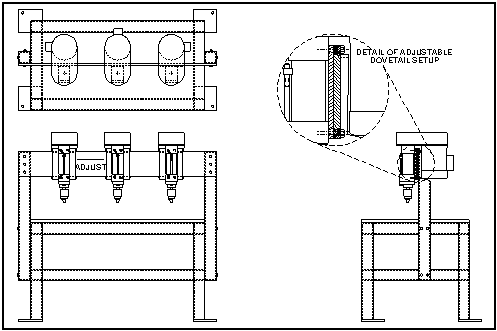

Adjustable In-Line Vertical Drilling Stand  drill fixture

When the drilling locations are in-line and ocasionally change, ask us for assistance.

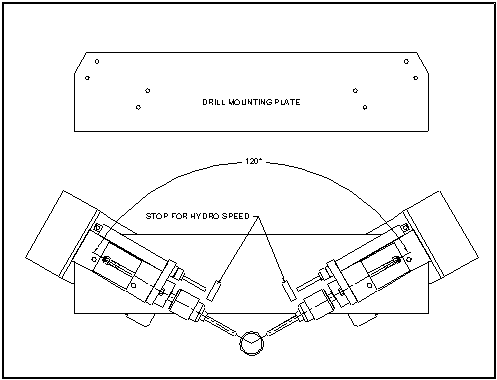

Angle Drill Fixture  drilling fixture

Out of position patterns can be difficult, if not impossible, to drill with speed and accuracy.  Manual drilling can lead to a major percentage of scraped parts. We can assist your company to find a permanent solution. Automatic Drilling application assistance is FREE!

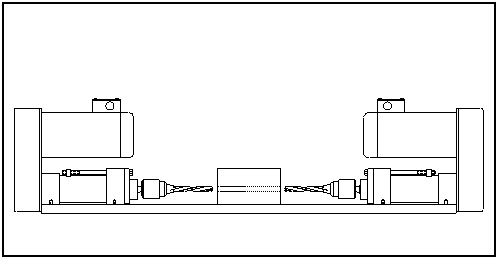

Simultaneous Deep Hole Drilling (Gun Drilling)  deep hole drilling

Deep holes can be a difficult drilling operation.  If "Peck Drilling" is needed it can increase the problems.  We have a control system that can drill from two sides of a suitable part at the same time and eliminate a possible tool crash.
