Spindle Drives
|

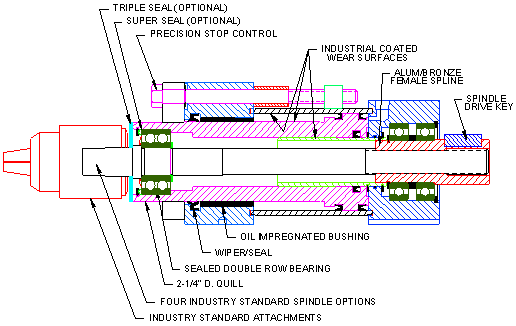

The Series 2000 Drill Unit is a pneumatic controlled self feeding drill. Pneumatic stroke controls allow the Series 2000 Drill Unit to perform many basic drilling operations. The units may be installed in any orientaton. This allows operations, that are difficult to drill manually, to be setup for trouble free production. Stroke control is usually adjusted by varying the line pressure and flow regulation with pneumatic flow controls. The controls usually have only one stroke speed and are suitable for most blind hole and many less critical thru hole drilling applications. For two speed operation or critical drilling operations we offer our Series 2100 Drill Units. Multiple units can easily be controlled simultaneously for high production drilling requirements with a single pneumatic directional valve. Our Cycle Automation control is optionally available for this use. The main features of the Series 2000 Drill Unit are:
|
